Which way does the furnace filter arrow point? Toward the blower, in every furnace configuration, as the makers print it
The furnace filter arrow points toward the blower, the way air flows: up in an upflow, down in a downflow, into the wall at a return grille (Trane, Carrier, Lennox).
- Verified
- Updated
- 6 min read
- 10 sources
Shop links on this page are affiliate links: a purchase may earn us a commission at no extra cost to you. Disclosure
Short answer
The arrow on a furnace filter points in the direction the air flows, and the air flows toward the furnace. Trane says to slide the filter in with the arrow pointing to the furnace, Carrier says the arrows point toward the blower motor, Lennox says toward the furnace or air handler, and Filtrete says to point the arrow on the frame toward the unit’s blower motor. That one rule covers every layout: in an upflow furnace the arrow points up into the unit, in a downflow furnace it points down, in a horizontal attic or crawlspace unit it points sideways toward the blower end, and in a wall or ceiling return grille it points away from the room into the duct. A 4- or 5-inch media cartridge follows the same rule; Honeywell’s installation guide says its arrow must match the airflow. Filtrete’s interval is at least every 3 months for a 1-inch filter and at least once a year for 4-inch and deeper.
Do not buy a better filter to fix this: the arrow is a free fix, and the filter you are about to throw away already shows the answer.
Where is the arrow, and what does it mean?
The arrow is printed on the cardboard or plastic frame, usually on one of the narrow sides. Trane’s guide says to look on the sides, usually the top, and Carrier says the arrows point toward the blower motor, in the same direction as the filter you just removed.
A pleated filter is built to take air from one side. Carrier says that installed backward, the less porous side faces the airflow, which can rapidly restrict air movement. Trane prints no mechanism, only that the wrong way defeats the purpose of the filter. The denser the media, the more the direction matters, which is why the MERV 8, 11 and 13 filter comparison is a worse buy than the cheapest filter if it goes in backwards.
If the frame has no arrow at all, this is the wrong page: that is a sizing or media question, and the nominal versus actual filter sizes page settles what to buy.
Which way does the arrow point in each furnace configuration?
Every maker prints the same rule, arrow toward the blower, and that rule decides each row. Only Filterbuy, a filter maker, prints the list by configuration; the furnace makers print the rule and the filter location. Lennox’s media cabinet manual 508028-01 supplies the location of the cabinet in each layout.
| Configuration | Where the filter usually sits | The arrow points | Who states it |
|---|---|---|---|
| Upflow furnace (return enters at the bottom or side) | Cabinet beneath the furnace, or vertical beside it at the side inlet (Lennox 508028-01) | Up, into the unit | Filterbuy; derived from Carrier, Trane, Filtrete |
| Downflow furnace | In the return duct just above the furnace (Lennox 508028-01) | Down, into the unit | Filterbuy; derived from Carrier, Trane, Filtrete |
| Horizontal furnace or air handler (attic, crawlspace) | In the return duct at the inlet end | Sideways, toward the blower end | Filterbuy; Honeywell (arrow matches airflow) |
| Wall or ceiling return grille | Behind the grille cover (Trane, Lennox, Nordic Pure) | Away from the room, into the duct | Filterbuy; Nordic Pure (a return grate sucks air in) |
| 4- to 5-inch media cabinet | In the return duct, usually next to the blower compartment (Honeywell) | Same direction as the airflow, toward the blower | Honeywell 68-0239EF-09 |
Upflow, downflow and horizontal describe which way the furnace pushes air out, and the return air enters from the opposite end, so the filter always sits on the way in. No Trane, Carrier or Lennox furnace installation manual was opened for this page, so the three orientation rows rest on Filterbuy’s list and the rule the furnace makers print, not on a furnace maker naming each orientation.
Where is the filter in the first place?
Three places, and the makers agree on them.

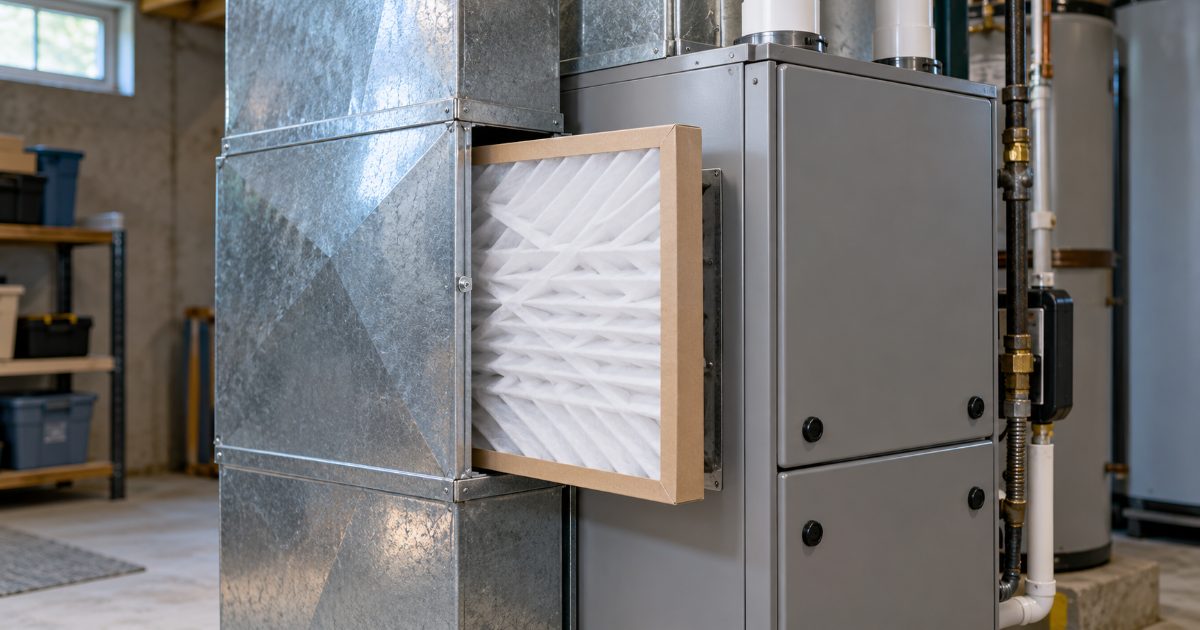

| Location | Who names it | How to reach it |
|---|---|---|
| Blower compartment inside the furnace | Carrier, Nordic Pure | Remove the furnace cover, usually held by screws or clips (Nordic Pure) |
| Filter cabinet or duct beside the furnace | Trane, Carrier, Honeywell | A slot or a hinged cabinet door in the return duct next to the blower compartment |
| Return air grille on a wall or ceiling | Trane, Lennox, Nordic Pure | Open the grille cover; the filter sits behind it |
A 4- or 5-inch cabinet beside the furnace takes a cartridge sized to that cabinet, not a 1-inch filter; the media filter by cabinet model page matches the cartridge to the cabinet.
What happens if the filter is backwards?
Only as the makers print it, because none of the pages read for this comparison prints a measured figure.
- Carrier: the less porous side faces the airflow, which can rapidly restrict air movement.
- Trane: the wrong way defeats the purpose of the filter.
- Filterbuy: the blower runs longer and you are not getting the MERV rating you paid for. Filterbuy also prints cost figures, which are its own estimates and are not repeated here.
A restricted filter and a dirty filter act the same way on the fan. ENERGY STAR says a dirty filter slows down airflow and makes the system work harder, and its rule is to check the filter every month and change it at least every 3 months. Filtrete’s interval matches: 1-inch filters at least every three months, 4-inch and deeper at least once a year. The full interval table by depth is the how often to change a furnace filter page.
Before you upgrade the MERV
Check the arrow on the filter already in the slot before you buy a denser one. A MERV 13 filter is the one that costs the most airflow when it faces the wrong way, and the MERV, MPR and FPR explainer says what each rating number buys. If the present filter is correct and the fan still struggles, the fix is the interval or the size, not the direction.
What should you do first?
- Photograph the old filter in the slot before pulling it: Nordic Pure says to note the arrow direction before removal, and the printed size is on the same frame.
- Find the blower. The arrow on the new filter points at it (Carrier, Filtrete).
- For a return grille, point the arrow into the wall or ceiling, away from the room (Filterbuy, Nordic Pure).
- For a 4- or 5-inch cabinet, slide the cartridge in with its arrow matching the airflow and check visually that the two agree (Honeywell).
- Write the install date on the frame and set the interval: 3 months for 1-inch, a year for 4-inch and deeper (Filtrete).
What owners buy for this
The top picks from Best furnace filter at MERV 8, 11 and 13: the 1-inch pleats compared on what each maker prints, and why the furnace's static-pressure limit decides before the brand, compared on published specs and certifications.
A standard 1-inch 20x25 slot and a furnace with no MERV ceiling in the manual
Filtrete 20x25x1 MPR 1000 (MERV 11), 6 filters
3M MPR vs MERV chart: MPR 1000 paired with MERV 11, minimum capture E1 41%, E2 77%, E3 88%; MPR covers 0.3 to 1 micron particles. Interval, actual size and frame: Filtrete's product pages did not load this session, so none is printed here
Wants the step above MERV 11 and has furnace data that allows it
Filtrete 20x25x1 MPR 1500 (MERV 12), 6 filters
3M MPR vs MERV chart: MPR 1500 paired with MERV 12, minimum capture E1 54%, E2 83%, E3 90%. DOE: every commonly available MERV 12 it tested had over four times the pressure drop of MERV 2 fiberglass
A 16x25 slot, EPA's MERV 13 target, and a furnace maker who signs off on it
Filtrete 16x25x1 MPR 1900 (MERV 13), 6 filters
3M MPR vs MERV chart: MPR 1900 paired with MERV 13, minimum capture E1 62%, E2 87%, E3 95%, against MERV 13's 50/85/90%. The highest rating here and the one to skip without the furnace maker's static-pressure data
Frequently asked questions
Which way does the arrow on a furnace filter point?
Toward the furnace. Trane says to slide the filter in with the arrow pointing to the furnace, Carrier says the arrows point toward the blower motor, Lennox says toward the furnace or air handler, and Filtrete says to point the arrow on the frame toward the unit's blower motor. Air moves from the return duct into the furnace, so the arrow follows that air.
Which way does the arrow point in a return air grille on the wall or ceiling?
Into the wall or ceiling, away from the room. Nordic Pure describes return grates as large vents that suck air in rather than blow it out, and Filterbuy's per-configuration list puts the arrow away from the room and into the ductwork. The filter sits inside the grille, so the printed arrow faces the duct behind it, not the room in front.
What happens if the furnace filter is installed backwards?
Carrier says the less porous side then faces the airflow, which can rapidly restrict air movement, and Trane says the wrong way defeats the purpose of the filter. Filterbuy says the blower runs longer and you do not get the MERV rating you paid for. No maker page read for this comparison prints a measured figure, so none appears here.
Which way does the arrow go on a 4- or 5-inch media filter?
The same way as a 1-inch filter: in the direction of airflow, toward the blower. Honeywell's media air cleaner installation guide says the arrow on the cartridge must point in the same direction as the airflow and to check visually that the two match. The cabinet usually sits in the return duct next to the furnace blower compartment, so the arrow points at the furnace.
What if the old filter is already out and nobody noted the arrow?
Find the blower. Carrier says the filter sits in the blower compartment or in the ductwork leading into the furnace, and the arrow points toward that blower motor. Nordic Pure's advice is to note the old arrow before removal and install the new filter the same way; when that chance is gone, the blower side of the slot is the arrow side.
