Does my thermostat need a C wire? Terminal letters, the no-C-wire options each maker prints, and the voltage label that rules a smart thermostat out
Google: a C wire only powers the thermostat. Nest, ecobee and Honeywell work on 24 V systems without one via a spare wire or a Y/G adapter. 120 or 240 V means no.
- Verified
- Updated
- 8 min read
- 10 sources
Shop links on this page are affiliate links: a purchase may earn us a commission at no extra cost to you. Disclosure
Short answer
A C wire powers a smart thermostat and nothing else: Google’s Nest Help page says the common wire “doesn’t control heating or cooling functions. It only provides constant power to your thermostat.” Nest, ecobee and Honeywell Home thermostats are all built for 24 V systems (Google asks for at least 20 volts at the thermostat), and each maker prints a route around a missing C wire. First, Google and Resideo both say to look for an unused spare wire in the bundle and connect that as C. Second, an adapter at the furnace control board: the Nest Power Connector for Nest, or a module that converts the Y and G wires into C and K, which is how ecobee’s Power Extender Kit and Honeywell’s THP9045A work, both needing at least four wires. The one wiring a smart thermostat cannot use is line voltage: a thermostat labelled 110, 115, 120 or 240 VAC, or L1/L2 with thick wire nuts, is incompatible in Google’s and ecobee’s words.
The picks
Honeywell Home thermostat, four wires, no spare and no C wire
Honeywell Home THP9045A2098/U C-Wire Adapter
Resideo guide 33-00618: install only if no C wire is available; converts the G and Y wires into C and K at the HVAC control board; on zoned systems sits between the thermostat and the zoning panel
ecobee Essential or Lite buyer, four wires at the thermostat, 24 VAC system
ecobee Power Extender Kit (for Smart Thermostat Essential and Lite)
ecobee PEK page: needs at least four wires at the thermostat, 24 VAC systems only, combines Y and G into one wire; not compatible with millivolt, high-voltage, dual transformer, fan coil or communicating systems; included with Premium and Enhanced, sold separately for Essential and Lite
Skip the adapter until you have counted the wires and read the voltage label: between them they decide between a free fix, a small kit and a different thermostat altogether.
What does each terminal letter control?
Wire colours mean nothing. ecobee’s compatibility article says colours “are not standardized” and to “always use the label on the connector the wire is attached to”; Resideo’s adapter guide says to photograph and label every wire by terminal before disconnecting any. The letters below are Google’s definitions from its Identify a thermostat wire page, with Resideo’s wiring module table (69-2065EFS) alongside where it prints the same terminal.
| Terminal | What it controls (Google Nest Help) | Resideo 69-2065EFS table |
|---|---|---|
| R | Power wire for heating and cooling | R: 24V |
| Rh | Heating power on a dual-transformer system; both if there is no Rc | not listed |
| Rc | Cooling power on a dual-transformer system; both if there is no Rh | not listed |
| C | Common: constant power return to the thermostat, no heating or cooling function | C: 24V Common |
| W / W1 | Heating | not listed |
| W2 | Second-stage heat, or auxiliary heat, depending on the system | not listed |
| Y / Y1 | Cooling in most systems | Y: cooling relay |
| Y2 | Second-stage cooling or second compressor stage | not listed |
| G / G1 | Fan | G: fan relay |
| O/B | Heat pump changeover valve | not listed |
| AUX | Auxiliary heat on heat pumps | not listed |
| E | Emergency heat on/off | not listed |
| K | not defined on Google’s page | K: communication, carries Y and G on one wire after the module |
Resideo’s guide adds one trap: on certain thermostats the C terminal is labelled B. Google’s compatibility page also lists terminals its own thermostats accept, among them a * terminal and AQ+ and AQ- on some models.
Which no-C-wire option does each maker print?
Each maker’s first answer is the same: look for a wire that is already there. Google’s first option when there is no C wire is an unused spare wire; Resideo’s Wire Saver document says that if the bundle “includes an extra wire not connected to the old thermostat, you can use that wire” and no adapter is needed. Only when the bundle holds nothing spare does the adapter earn its place.
| Maker | Route | What the maker prints | Where it installs |
|---|---|---|---|
| Google Nest | Unused spare wire as C | First option on the C wire help page | Thermostat and furnace board |
| Google Nest | Nest Power Connector | For use “if there aren’t any spare thermostat wires”; works with Nest Thermostat, Nest Learning Thermostat (3rd and 4th gen) and Nest Thermostat E | Furnace or air handler control board; the zone controller on zoned systems |
| Google Nest | Third-party C wire adapter | “Some 3rd party C wire adapters can cause problems or damage your Nest thermostat, even if they claim to be Nest compatible” | Not recommended by Google |
| ecobee | Power Extender Kit (PEK) | Needs at least four wires at the thermostat, 24 VAC systems only, combines the Y and G wire functions into one wire; included with Smart Thermostat Premium, Enhanced and older models, sold separately for Essential and Lite | System control board |
| Honeywell Home (Resideo) | Unused spare wire as C | Guide step 4: if there is an unused wire, use it instead of the product | Thermostat and furnace board |
| Honeywell Home (Resideo) | C-Wire Adapter THP9045A | “Only install if you do not have a C wire available”; converts the G and Y wires into C and K; needs R, C, W and K at the thermostat | HVAC control board; on zoned systems between the thermostat and the zoning panel, never between the panel and the equipment |
| Any maker | Run new thermostat cable | Not described on the maker pages opened for this page; a new multi-conductor cable is the alternative to an adapter | Thermostat to furnace board |
ecobee’s PEK page lists what it will not work with: millivolt, high-voltage, dual transformer, and fan coil or communicating units. Resideo’s Wire Saver document lists the wire combinations its adapter supports: single stage (R or Rc, Y, G, W), two-stage heat with single cooling (adds W2), and two stages of each (adds Y2). A heat pump with O/B is outside the list the document prints.
The Honeywell adapter sold today is the THP9045A2098/U ; Resideo marks the older THP9045A1023 Wire Saver as a legacy product no longer manufactured. ecobee’s kit for the Essential and Lite is the Power Extender Kit . Google’s Nest Power Connector was not in stock when this page was checked, so it has no product card here.
Is my system line voltage, millivolt or something else that rules a smart thermostat out?
Google’s compatibility page says Nest thermostats are “designed to work with most 24 V systems” and need at least 20 volts; ecobee’s compatibility article says the same of “most 24-volt residential heating and cooling systems in North America”. A line-voltage thermostat is the common failure case: in ecobee’s words, the thermostat “should be labeled with 120 V or 240 V or have L1/L2 labels and thick wire nuts”, and electric baseboard heaters are its example. ecobee notes a professional can fit a 240 V/120 V to 24 V step-down transformer; Google simply lists those systems as incompatible.
| System on the old thermostat | Google Nest says | ecobee says |
|---|---|---|
| Labelled 110, 115, 120 or 240 VAC, L1/L2, thick wire nuts | Incompatible | Not compatible; step-down transformer by a professional is the only route |
| Millivolt (wall or floor heaters) | Incompatible | Not compatible |
| Solid fuel: coal, wood, pellets, biomass | Incompatible | Not compatible |
| Proprietary systems with non-standard labels (1, 2, 3, 4 or A, B, C, D) | Incompatible | Not compatible |
| DC voltage (recreational vehicles) | not listed | Not compatible |
| Forced hot water or steam, high-voltage baseboard | Incompatible | covered by the high-voltage rule |
| Micro-controller system without C wire support | Incompatible | not listed |
Both makers run an online checker that asks for the terminal letters off the old thermostat: Google’s Nest Compatibility Checker, linked from its compatibility page at store.google.com, and ecobee’s checker at ecobee.com/compatibility. Photograph the terminals before you type them in.
Before you buy anything

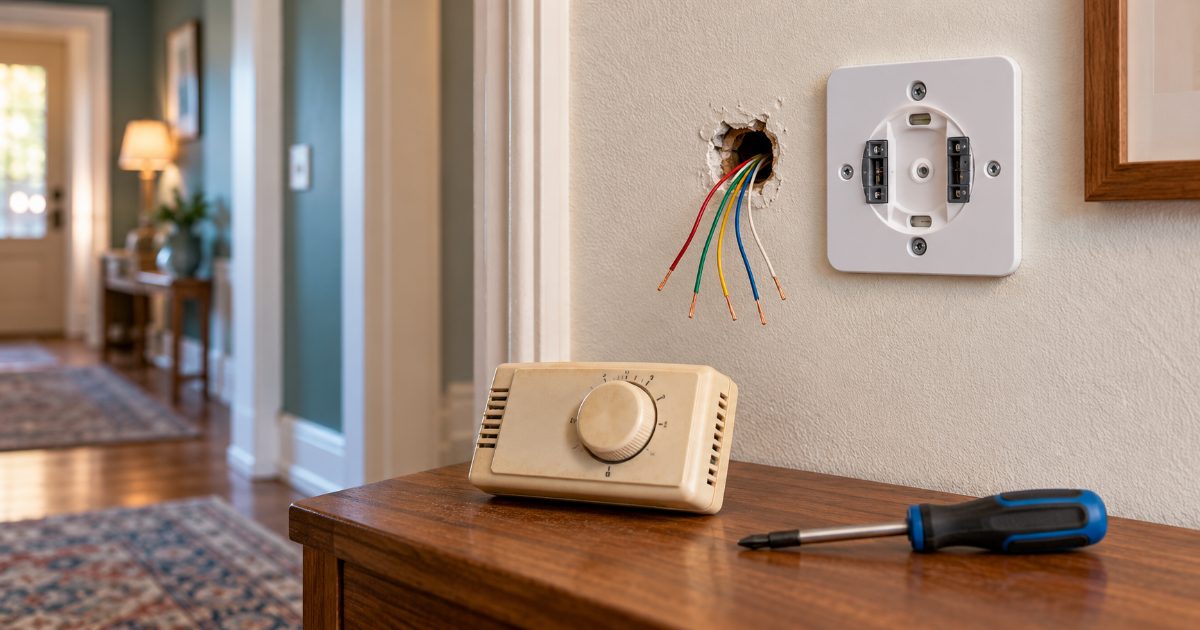

Do not buy an adapter until you have pulled the old thermostat off the wall with the power off and counted the wires in the bundle, not just the ones on terminals. A spare wire costs nothing and is every maker’s first instruction. If the count is four or five with no spare, the Honeywell THP9045A or the ecobee Power Extender Kit makes a C wire from Y and G, but only on a 24 VAC system and not on a dual-transformer one. If the label reads 120 V or 240 V, close this page: no adapter changes that, and the best smart thermostat comparison starts from the same wiring check.
What should you do first?
- Turn off the power at the breaker or the furnace switch. Google puts it first on its Power Connector page; Resideo makes it step 1 of its adapter guide. ecobee’s test is to move the setpoint at least five degrees and confirm nothing starts.
- Photograph the old thermostat’s terminals and label each wire by letter, not colour (Resideo and ecobee).
- Read the label: 110, 115, 120, 240 VAC or L1/L2 means stop; a smart thermostat is not compatible.
- Count the wires in the bundle. A spare wire goes on C at both ends and no adapter is needed (Google, Resideo).
- No spare and 24 VAC: Nest Power Connector, ecobee PEK or Honeywell THP9045A at the control board, following that maker’s guide, then run the maker’s compatibility checker before ordering the thermostat.
Frequently asked questions
What does the C wire on a thermostat actually do?
Google's Nest Help page defines it: the C wire, common wire, does not control heating or cooling functions. It only provides constant power to the thermostat. Resideo's wiring module table labels the same terminal 24V Common against R at 24V. A smart thermostat with a screen and Wi-Fi draws that power continuously, which is why makers ask for a C wire or a substitute for it.
Can I install a smart thermostat with only four wires?
Usually yes, on a 24 V system. ecobee's Power Extender Kit needs at least four wires at the thermostat and makes a C wire by combining the Y and G functions. Resideo's C-Wire Adapter does the same, converting G and Y into C and K, and needs R, C, W and K at the thermostat. Google's route is the Nest Power Connector, fitted at the furnace control board.
My old thermostat has a spare wire tucked in the wall. Can I use it as the C wire?
Yes, and both Google and Resideo say to do that before buying anything. Google's first no-C-wire option is to use an unused spare wire as C. Resideo's Wire Saver document says that if the bundle includes an extra wire not connected to the old thermostat, you can use that wire as C and no adapter is needed. The spare must be connected to C at the furnace board too.
How do I know if my heating is line voltage and not compatible?
Read the label on the old thermostat. Google says a system labelled 110, 115, 120 or 240 VAC is incompatible with Nest. ecobee's compatibility article says a high-voltage thermostat is labelled 120 V or 240 V or has L1/L2 labels and thick wire nuts, and names electric baseboard heaters as the typical case. Both makers list millivolt, solid fuel and proprietary systems as incompatible as well.
Do I have to turn the power off to swap a thermostat?
Every maker says so. Google: turn off power to your system at the fuse box or system switch, so the system is not damaged. Resideo's adapter guide puts it as step 1, at the breaker box or control switch for the HVAC system. ecobee adds a test: after switching off, change the setpoint by at least five degrees and confirm the equipment does not start.
Fact sheet and how to cite this page
- Answer
- Google’s Nest support page says the C (common) wire does not control heating or cooling: it only provides constant power to the thermostat. Nest, ecobee and Honeywell Home thermostats are built for 24 V systems and each maker prints a no-C-wire route: an unused spare wire, the Nest Power Connector, or an adapter that converts the Y and G wires (ecobee PEK, Honeywell THP9045A). A thermostat labelled 110, 115, 120 or 240 VAC is incompatible.
- Basis
- Terminal definitions and the 24 V, at least 20 volts, and 110/115/120/240 VAC statements are Google’s, from the Nest Help pages opened on 2026-10-03; ecobee’s four-wire and 24 VAC rules are from its Power Extender Kit page; Honeywell Home’s adapter rules are from Resideo guide 33-00618 and documents 33-00042 and 69-2065EFS.
- Assumptions
- The reader has a conventional low-voltage furnace, air handler or heat pump; millivolt, line-voltage baseboard, solid fuel, DC and proprietary systems are excluded by the makers’ own lists
- Terminal functions are as Google’s Identify a thermostat wire page defines them; Resideo’s module table confirms R, C, Y and G only, so no Honeywell wording is claimed for the other letters
- Stock status of the two adapters was checked through the Amazon Creators API on 2026-10-03; the Google Nest Power Connector was not in stock that day and is described without a product card
- Method
- Spec and document comparison of the wiring, compatibility and installation pages published by Google Nest, ecobee and Resideo (Honeywell Home), read on 2026-10-03. No thermostat, adapter or furnace board was tested. Prices on the product cards are Amazon’s live figures and are never written into this page.
- Primary source
- Google Nest Help, Learn about the common or C wire (manufacturer or vendor document)
- Facts verified
- Last updated
- Cite as
- OwnerSpec, "Does my thermostat need a C wire? Terminal letters, the no-C-wire options each maker prints, and the voltage label that rules a smart thermostat out", https://ownerspec.com/air/guides/smart-thermostat-c-wire-compatibility/, facts verified 3 October 2026.
Every figure above also appears, with its source, in the article. All sources ยท How OwnerSpec verifies numbers
