Smoke detector chirping: low battery, end of life, or a stale error, read by the pattern each maker prints
A single chirp every 30 or 60 seconds is a low battery (NFPA); chirping that continues after a new battery is end of life. Replace every smoke alarm at 10 years.
- Verified
- Updated
- 9 min read
- 20 sources
Shop links on this page are affiliate links: a purchase may earn us a commission at no extra cost to you. Disclosure
Short answer
A smoke detector chirping once every 30 or 60 seconds has a low battery, and chirping that continues after the battery has been replaced means the alarm is at the end of its life and must be replaced: that is NFPA’s wording in its Educational Messages Desk Reference, which also says to replace every smoke alarm when it is 10 years old from the manufacture date printed on its back. Before condemning a hardwired unit, drain the stale error first. Kidde’s support page says the processor can retain a weak-battery error: turn off the breaker, remove the alarm, pull the battery, hold the test button at least 15 seconds, then reconnect. First Alert’s article gives 15 to 30 seconds. If the chirp returns, read the pattern against the table below: on Kidde’s 20SA10 and 20SD10, 1 chirp every 60 seconds is low battery, 2 chirps every 60 seconds is end of unit life, and 3 chirps is a sensor fault.
The picks
Replacing a battery-only alarm that is past its date
Kidde 20SD10 10-year sealed battery smoke alarm, 1 pack
Kidde 20SD10 guide: sealed lithium battery, 10 years from initial power-up; amber LED plus 1 chirp every 60 s is low battery, 2 chirps every 60 s is end of unit life; button silences 24 hours
Replacing a hardwired, interconnected Kidde alarm
Kidde 20SA10 hardwired smoke alarm with 10-year battery backup, 1 pack
Kidde 20SA10 guide: hardwired with sealed 10-year backup, ships its own AC quick-connector harness, interconnects only with the Kidde models its guide lists; chirps a false low battery if AC is applied before it is rotated onto the bracket
Keeping a legacy Kidde or FireX harness, after checking Kidde's compatibility guide
Kidde 20-9003 quick connect adapter
Kidde product page and FAQ: joins select legacy Kidde and FireX harnesses to new compatible Kidde hardwired alarms, no wire stripping; not universal, confirm the exact existing and replacement model first; not for other makers' harnesses
If you have already changed the battery twice, stop buying batteries: turn the alarm over and read the date, because a 10-year-old alarm chirps for a reason no battery fixes.
What does the chirp pattern mean on your alarm?
A chirp is a short single tone, distinct from the full alarm. The same maker prints different patterns on different models, so the model number on the back decides which row applies.
| Pattern | Maker and model | Meaning | Fix | Source |
|---|---|---|---|---|
| 1 chirp every 30 or 60 s | NFPA, all alarms | Low battery; if it continues after a new battery, end of life | Change the battery; if it keeps chirping, replace the alarm | Desk Reference 1.4.3.2 |
| 1 chirp every 30–40 s (60 s on some), at least 7 days | Kidde, general | Low battery | Replace the battery, then test | Consistent chirping page |
| 1 chirp every 30 s, sealed-battery model | Kidde, general | End of life | Replace the alarm | Consistent chirping page |
| Amber LED blink + 1 chirp every 60 s | Kidde 20SA10, 20SD10 | Low battery | Button silences 24 hours; the battery is sealed, so the alarm is replaced | 20SA10 and 20SD10 guides |
| Amber LED blinks twice + 2 chirps every 60 s | Kidde 20SA10, 20SD10 | End of unit life, 10 years from initial power-up | Replace; button silences 24 hours, and 7 days after it begins it cannot be silenced | 20SA10 and 20SD10 guides |
| Amber LED + 3 chirps every 60 s | Kidde 20SA10, 20SD10 | Smoke sensor fault, fatal fault or stuck button | Press the button once; replace if it persists | 20SA10 and 20SD10 guides |
| Constant tone | Kidde 20SA10, 20SD10 | MCU failure | Replace the alarm | 20SA10 and 20SD10 guides |
| 1 chirp every 60 s right after installing | Kidde 20SA10 | False low battery: AC connected before the backup battery was activated | Rotate the alarm fully onto its mounting bracket, which activates the battery | 20SA10 guide |
| 2 chirps every 30 s with a double flash | Kidde i12010S | End of life, 10 years from first power-up | Replace; End of Life Hush silences about 3 days at a time, up to 30 days | i12010S guide |
| 1 chirp about once a minute, about 7 days | First Alert/BRK 9120B | Low or weak battery | Replace the 9V battery | 9120B manual |
| Single intermittent chirp | First Alert, general | Low battery, maintenance issue or end of life | Battery out, hold Test 15–30 s, new battery, clean, test | Alarm chirps with new battery |
| Red LED flash + 1 beep every 60 s | X-Sense XS01-WR | Low battery | Replace the CR123A battery | XS01-WR manual |
| 2 beeps every 40 s | X-Sense XS01-WR | Malfunction | Clean the alarm or replace it | XS01-WR manual |
| 2 chirps about every 60 s, LED blink every 2 minutes | USI MI3050S | Low battery, or end of service life after about 10 years: the same signal | Replace the alarm; the deactivation key stops the chirp about a minute after turning | MI3050S manual |
On the Universal Security Instruments MI3050S, a sealed 10-year unit, low battery and end of service life sound identical, and the answer is the same either way: replace. No First Alert or X-Sense document read for this page prints an end-of-life chirp pattern, so those rows carry none.
Why does it still chirp after a new battery?
Kidde’s intermittent-beeping page says the processor can retain an error, such as a weak battery, after the cause is fixed. The reset drains it:

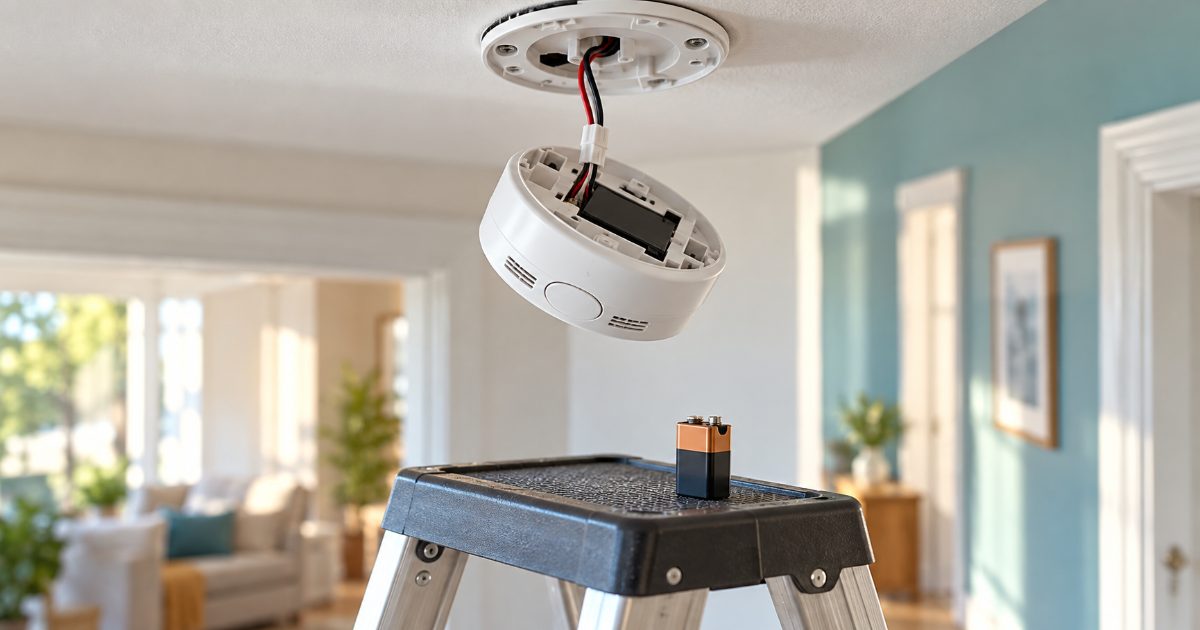

- Hardwired: turn off the breaker, remove the alarm from its bracket, unplug the harness, remove the battery.
- Hold the test button at least 15 seconds (Kidde) or 15 to 30 seconds (First Alert).
- Reconnect power and the battery. Kidde says the unit chirps once as power returns, then stays quiet.
- Battery-only: battery out, hold Test at least 15 seconds, battery in.
If the chirp returns after a correct reset and a fresh battery, NFPA’s desk reference item 1.4.3.2 calls it end of life, and item 1.5.4 says a sealed long-life alarm giving an end-of-life warning is replaced as a whole unit right away.
Is it the battery, the age, or the room?
NFPA’s rule is the date, not the sound: item 1.5.1 says replace all smoke alarms when they are 10 years old from the manufacture date on the outside or back of the alarm, and replace any alarm with no date. Item 1.5.2 says the sensors wear out, and an alarm goes sooner if it gives an end-of-life warning. Kidde’s 20SA10 and 20SD10 count 10 years from initial power-up and the First Alert 9120B manual counts from the date of purchase; the manufacture date is the earliest of the three, so use it.
A chirp with no battery fault and no age problem is usually the room.
| Nuisance condition | Who states it | What to do |
|---|---|---|
| Temperature below 40 °F or above 100 °F | NFPA 1.3.14; Kidde temperature page | Kidde says cold can affect the battery and cause a low-battery chirp; relocate the alarm |
| Chirp only between about 2 a.m. and 6 a.m. | Kidde night-time chirp page | Cooler air raises a weak battery’s internal resistance; it is a low battery, replace it |
| High humidity, steam, condensation | Kidde humidity page; X-Sense manual | Kidde names extreme temperature changes and an uninsulated electrical box under an attic; X-Sense rates its XS01-WR to 85% non-condensing |
| Airflow within 3 feet of a register, ceiling fan or open window | Kidde intermittent-beeping page | Move the alarm out of the draught |
| Cooking | NFPA tip sheet | Keep alarms at least 10 feet (3 m) from the stove |
| Loose or badly seated battery | Kidde intermittent-beeping page | Reseat it, check the drawer closes fully |
Why did it start chirping after a power outage?
Kidde’s intermittent-beeping page says power surges or interruptions can make a hardwired alarm chirp when power is restored, and a chirp at the same time each day can be a surge when the power company switches grids. A chirp that follows an exhaust fan or heater switching on points at the circuit: Kidde says to move the alarm to another circuit or have an electrician look. A loose white neutral wire can make a chirp echo from one interconnected unit to the next. No document read for this page prints a universal post-outage chirp pattern.
Which unit in the interconnected system is chirping?
The room acoustics lie; the LEDs do not.
| Maker and model | Locator | Clears when |
|---|---|---|
| Kidde i12010S | Alarm Memory: the originating unit flashes its green LED every 16 s after an alarm; a half-second green flash (AC only) is printed to locate a chirping unit | Test/reset button pressed |
| Kidde 20SA10 | Smoke Alarm Memory: red LED blinks every 15 s, held 24 hours | Button pressed |
| First Alert/BRK 9120B | Latching Alarm Indicator: green LED 2 s on, 2 s off on the unit that saw smoke; red LED flashes rapidly on the initiating unit during alarm | Test/Silence pressed, or AC and DC power removed |
| USI MI3050S | QUICK FIND: press Test/Silence on each alarm; the originating alarm keeps sounding about 60 s | Hold Test/Silence about 10 s |
| X-Sense XS01-WR | In an interlinked network the initiating alarm cannot be silenced from another unit, so the one that will not hush is the origin | Silence lasts about 9 minutes |
Most of these memories record an alarm event, not a chirp.
Before you buy a replacement
Check whether the chirp comes from a carbon monoxide or combination alarm first: Kidde’s CO patterns differ and its combination alarms are replaced at 7 years, not 10. That tree is the carbon monoxide detector beeping page; the shortlist is the best carbon monoxide detector comparison. Then read the back label: battery-only takes the 20SD10, hardwired Kidde takes the 20SA10.
Which replacement fits the bracket you have?
Interconnection is the first constraint. Kidde’s i12010S guide says it interconnects only with listed Kidde and Nighthawk models and is not approved with any other brand; the 20SA10 guide lists the Kidde models it joins, up to 24 Kidde devices within NFPA’s limit of 12 smoke alarms and 18 alarms total, all on one circuit. Kidde’s interconnect page says mixing in an unlisted maker can cause nuisance alarms or a failure to alarm.
The plug is the second. Kidde’s 20SA10 ships its own AC quick-connector harness, wired to the house wires in place of the old one. Kidde’s 20-9003 adapter avoids that for select legacy Kidde and FireX harnesses: its guide draws three harness types and says the adapter will not work if the existing one matches none of them. Kidde’s FAQ calls it not universal and sends the buyer to the user guide or compatibility guide for the exact existing and replacement models. That compatibility guide could not be read for this page, so whether it pairs a 20SA10 with your harness is a question for that document. A First Alert/BRK harness needs Kidde’s separate KA-B2 adapter, only for listed models made before 1 June 2003.
The battery-only case is simpler: the 20SD10 is a sealed 10-year unit whose chirp table is printed above. Skip it if the old alarm is hardwired.
What should you do first?
- Count the chirps and time the gap with a phone.
- Read the model number and manufacture date on the back. At 10 years, replace.
- Replace the battery where it is replaceable, then do the 15-second reset.
- If it still chirps, match the pattern to the table and act on the row.
- Test every alarm afterward: NFPA’s minimum is monthly; Kidde, X-Sense and USI ask for weekly.
Frequently asked questions
Why does the smoke detector still chirp after a new battery?
Two reasons, in order. Kidde says the processor can retain an error such as a weak battery: power off, battery out, hold the test button at least 15 seconds, then reinstall (First Alert's article says 15 to 30 seconds). If it chirps again, NFPA's desk reference says chirping that continues after a battery change means the alarm is at the end of its life and must be replaced.
How do I know which smoke detector is chirping in an interconnected system?
Read the LEDs, not the sound. Kidde's i12010S guide flashes the originating unit's green LED every 16 seconds after an alarm, and a half-second green flash on AC-only units is printed there to locate a chirping unit. The 20SA10 blinks red every 15 seconds for 24 hours. BRK's 9120B flashes green 2 seconds on, 2 seconds off. USI's MI3050S: press Test on each alarm; the originator sounds 60 seconds.
Why does the smoke detector chirp only at night?
Kidde's support page explains that as a battery nears the end of its life, cooler air raises its internal resistance, so the low-battery chirp appears in the coolest hours, roughly 2 a.m. to 6 a.m., and stops once the home warms. It is still a low battery, not a fault. Replace the battery, test the alarm, and check the manufacture date while the alarm is down.
When does a smoke detector have to be replaced, even if it still tests?
NFPA's desk reference item 1.5.1 says to replace all smoke alarms when they are 10 years old from the manufacture date, found on the outside or back of the alarm, and to replace any alarm that carries no date. Kidde's 20SA10 and 20SD10 count 10 years from initial power-up; the First Alert 9120B manual counts from the date of purchase. Use the manufacture date.
Can a new Kidde hardwired alarm plug into an old Kidde or FireX harness?
Only through an adapter, and only for the harnesses the adapter guide draws. Kidde's 20-9003 quick-connect adapter joins select legacy Kidde and FireX harnesses to new compatible Kidde hardwired alarms, and Kidde's FAQ says it is not universal: confirm the exact existing and replacement model in the user guide or compatibility guide. A First Alert/BRK harness needs Kidde's separate KA-B adapter, and only for listed pre-2003 models.
Fact sheet and how to cite this page
- Answer
- NFPA’s desk reference says a single chirp every 30 or 60 seconds is a low battery, and chirping that continues after the battery has been replaced is the end-of-life signal: replace the alarm. Every smoke alarm is replaced at 10 years from the manufacture date on its back. Before replacing a hardwired unit, drain the stale error: power off, battery out, hold Test 15 seconds (Kidde) or 15 to 30 seconds (First Alert).
- Basis
- NFPA’s Educational Messages Desk Reference (2026) items 1.4.3.2 and 1.5.1, and the chirp and LED tables printed in Kidde’s 20SA10, 20SD10 and i12010S user guides, the First Alert/BRK 9120B manual, the X-Sense XS01-WR manual and the Universal Security Instruments MI3050S manual.
- Assumptions
- Patterns are quoted for the exact model whose guide was read; the same maker prints different patterns on other models, so the label on the back of the alarm decides which row applies
- No First Alert or X-Sense document read for this page prints an end-of-life chirp pattern, so neither row carries one
- Whether the Kidde 20SA10 fits a legacy harness through the 20-9003 adapter is not confirmed in any document read; the page defers to Kidde’s compatibility guide
- Method
- Spec comparison of the chirp patterns, LED codes and reset steps printed by NFPA and by the makers’ own guides and support pages, read on 2026-10-03. No alarm was bench tested and no owner reports were collected. Prices on the product cards are Amazon’s live figures and are never written into this page.
- Primary source
- NFPA, Educational Messages Desk Reference 2026, chapter 1 (smoke alarms) (manufacturer or vendor document)
- Facts verified
- Last updated
- Cite as
- OwnerSpec, "Smoke detector chirping: low battery, end of life, or a stale error, read by the pattern each maker prints", https://ownerspec.com/air/guides/smoke-detector-chirping-low-battery-end-of-life/, facts verified 3 October 2026.
Every figure above also appears, with its source, in the article. All sources · How OwnerSpec verifies numbers
