Short answer
For a tightly built home on a gas or oil furnace the pick is the Aprilaire 600, a bypass humidifier: Aprilaire’s shop page prints 17 gallons per day and up to 5,000 sq ft for a tightly constructed home, a Model 35 Water Panel changed at least annually and a 24 VAC transformer, and the owner’s manual a 5-year limited warranty. Aprilaire’s own FAQ rates the same unit for homes up to 3,000 sq ft, so size from the smaller figure. The runner-up is the Honeywell Home HE280, which prints the same 17 gallons per day and 18,000 cubic feet but a 1-year warranty. On a heat pump or air handler, the Aprilaire 800 steam unit makes its own steam: its manual prints 11.5 gallons per day wired to 120 V and 11.5 A, up to 34.6 on 240 V and 16 A, on a dedicated 20 or 25 A circuit. Skip all of them if you rent: every install cuts the duct.
The picks
A tight home on a gas furnace, up to 5,000 sq ft by the shop page or 3,000 by the FAQ
AprilAire 600M (manual control, bypass, 17 GPD)
Aprilaire shop page: large bypass evaporative, 17 gallons per day, up to 5,000 sq ft tightly constructed per AHRI Guideline F, 24 VAC transformer, Model 35 Water Panel; owner's manual: panel at least annually, drain flushes minerals, 5-year limited warranty, void without a qualified HVAC contractor install. The M is the manual humidistat: no outdoor sensor
A smaller tight home where the compact bypass case has to fit the plenum
AprilAire 500 (automatic control, bypass, 12 GPD)
Aprilaire shop page: small bypass evaporative, 12 gallons per day, up to 3,600 sq ft tightly constructed, 24 VAC transformer, Model 10 Water Panel; Aprilaire FAQ: about 11 gallons daily, homes up to 1,500 sq ft, 0.5 gal/hr evaporation; owner's manual: 5-year limited warranty
No room for a bypass duct, or the highest evaporative output Aprilaire prints
AprilAire 700 (automatic control, fan-powered, 18 GPD)
Aprilaire shop page: fan-powered duct-mounted evaporative, 18 gallons per day, tightly constructed homes up to 5,300 sq ft, 24 VAC transformer, Model 35 Water Panel; Aprilaire FAQ: 0.75 gal/hr evaporation, homes up to 3,000 sq ft; owner's manual: 5-year limited warranty
Wants a water-saving bypass and accepts a 1-year warranty
Honeywell Home HE280A (bypass, 17 GPD)
Honeywell Home product page: up to 17 gallons per day, up to 18,000 cubic feet, 24 VAC, pad HC26P1002, 1-year warranty; sell sheet: up to 2,000 sq ft for homes over 20 years old, up to 4,000 sq ft for newer homes, 0.5 A, 30% less water than standard models; install instructions 69-2685ES: pad annually, more often in hard water
A heat pump or air handler home, or one too large or too loose for an evaporative unit
AprilAire 800 steam humidifier
Aprilaire 800 manual Table 1: 11.5 GPD at 120 V and 11.5 A up to 34.6 GPD at 240 V and 16 A; 11.5 A needs a 20 A dedicated circuit, 16 A a 25 A circuit; ships wired for 240 VAC; 7/8 in ID drain, 25 to 120 psi supply, no RO or demineralized water; Model 80 canister yearly, electrode wires every 3 years by a licensed contractor
If you are choosing by the square-foot number on the box, stop: the same Aprilaire 700 is 5,300 sq ft on the shop page and 3,000 in Aprilaire’s own FAQ.
How was this shortlist built?
Every figure here is a manufacturer-published specification read on 2026-10-02 from the document named beside it. Nothing was installed, run or measured by this site, and every linked listing was confirmed in stock on Amazon US the same day. Units were compared on type, printed gallons per day and the conditions behind them, home size and tightness band, water use and drain, voltage and circuit, water panel part and interval, and warranty years.

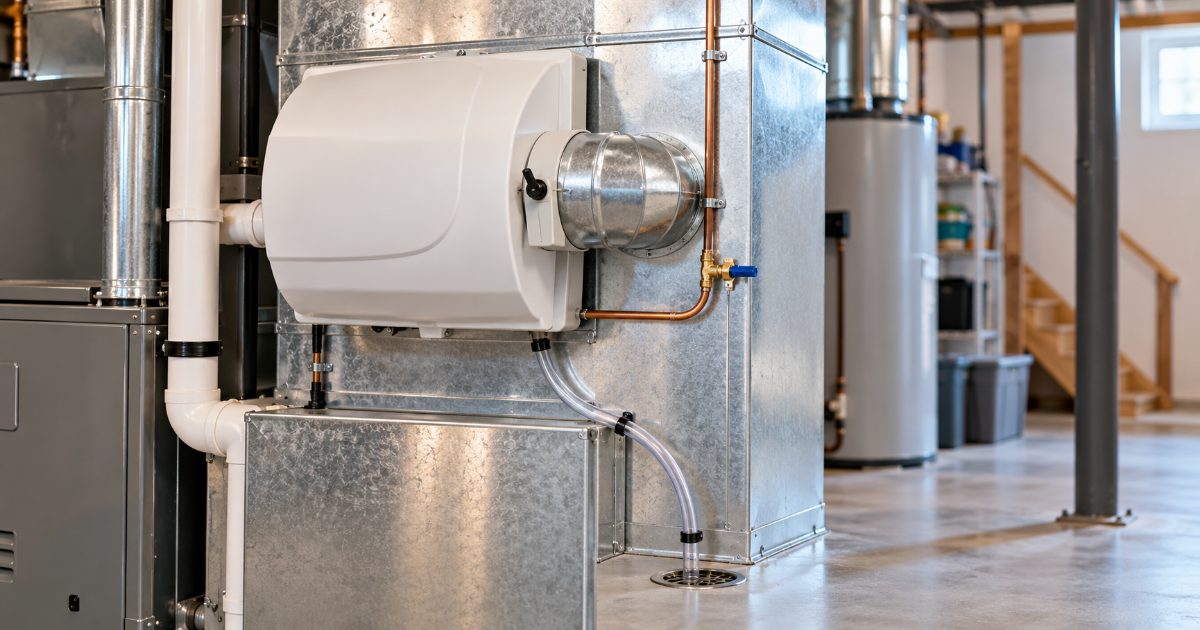

A bypass humidifier uses the furnace blower to push plenum air through a wet water panel by way of a duct to the other plenum. A fan-powered humidifier carries its own fan and needs no bypass duct. A steam humidifier boils water with electrodes, so it does not depend on plenum heat.
GeneralAire’s 1042LH is compared but not linked: both listings reported scarce stock rather than plain in-stock. Honeywell’s HE300 is sold only through its professional partners, and the HE240 appears for its printed figures only.
How do the units compare on paper?
| Unit | Type | Printed output | Home size (maker) | Power | Consumable | Drain | Warranty |
|---|---|---|---|---|---|---|---|
| Aprilaire 500 | Bypass | 12 GPD | 3,600 sq ft tight (shop); 1,500 sq ft (FAQ) | 24 VAC | Water Panel 10, at least annually | Yes, 1 to 2 gal/h water use | 5 years |
| Aprilaire 600M | Bypass | 17 GPD | 5,000 sq ft tight (shop); 3,000 sq ft (FAQ) | 24 VAC | Water Panel 35, at least annually | Yes, 1 to 2 gal/h | 5 years |
| Aprilaire 700 | Fan-powered | 18 GPD | 5,300 sq ft tight (shop); 3,000 sq ft (FAQ) | 24 VAC | Water Panel 35, at least annually | Yes, 1 to 2 gal/h | 5 years |
| Aprilaire 800 | Steam | 11.5 to 34.6 GPD by voltage and amps | 1,000 to 6,000 sq ft by wiring and tightness | 120, 208 or 240 VAC; 20 or 25 A dedicated circuit | Canister 80, yearly; electrode wires every 3 years | Yes, 7/8 in ID; 1 to 3 gal/h | Not printed in the manual read |
| Honeywell HE280 | Bypass | 17 GPD | 18,000 cu ft; 2,000 sq ft over 20 years old, 4,000 sq ft newer | 24 VAC, 0.5 A | Pad HC26P1002, annually | Yes, 1/2 in ID tube to floor drain | 1 year |
| Honeywell HE240 (no link) | Bypass | 12 GPD | 13,000 cu ft | 24 VAC | Pad HC22P1001, annually | Yes, 1/2 in ID tube | 1 year |
| Honeywell HE300 (pro install only) | Fan-powered | 18 GPD | 19,000 cu ft | 120 VAC | Not printed on the page read | Not printed on the page read | 5 years |
| GeneralAire 1042LH (scarce stock) | Bypass | 17 GPD at 120 F plenum | 3,000 sq ft | 24 VAC | Vapor pad 990-13, at least yearly | Yes, 15 ft hose included | 5 years |
Gallons per day is each maker’s figure under each maker’s conditions. Only GeneralAire prints a plenum temperature behind its number, and only the 800 manual prints how output changes with wiring. No document read gives the conditions behind the Aprilaire 500, 600 or 700 figure.
Why do the square-foot numbers disagree?
Because they describe different houses. Aprilaire’s shop pages rate the 500, 600 and 700 for a tightly constructed home per AHRI Guideline F at 3,600, 5,000 and 5,300 sq ft; Aprilaire’s FAQ puts the 500 at homes up to 1,500 sq ft and the 600 and 700 at 3,000.
The 800 manual shows the spread in one table: at 240 V and 16 A the maximum home is 6,000 sq ft tight, 4,000 average and 2,500 loose; at 120 V and 11.5 A it is 2,500, 1,500 and 1,000. Honeywell’s HE280 sell sheet uses age instead, 2,000 sq ft for a home over 20 years old and 4,000 for a newer one. Pick the band that describes the house, then read the smaller number.
Aprilaire 600 and 500: buy them or skip them?
Buy the 600 if the home is tight, the furnace is gas or oil and the plenum has room for a bypass duct. Aprilaire’s shop page prints 17 gallons per day, up to 5,000 sq ft tightly constructed, a 24 VAC transformer and the Model 35 Water Panel; the owner’s manual adds a 5-year limited warranty, panel excluded, changed at least annually.
The flaw is the control. The linked 600M carries a manual humidistat, so it cannot do what Aprilaire’s automatic control does: sense outdoor temperature and move the setpoint 1% RH for every 2 F change outdoors, per the owner’s manual. That is the rule behind the indoor humidity by outdoor temperature calculator.
Buy the Aprilaire 500 instead if the plenum is small: 12 gallons per day, up to 3,600 sq ft tight, the Model 10 panel, automatic control on the linked listing.
On a heat pump, check the water supply before buying either. The owner’s manual says hot supply water, 140 F maximum, is recommended for drain models and required for heat pump and air handler applications, and it prints no minimum plenum temperature.
Aprilaire 700: buy it or skip it?
Buy it if there is no room for a bypass duct. The shop page lists a fan-powered duct-mounted unit at 18 gallons per day for tightly constructed homes up to 5,300 sq ft, on a 24 VAC transformer with the same Model 35 Water Panel as the 600.
The flaw is the margin: 18 against 17 gallons per day, and the FAQ puts both units at 3,000 sq ft and 0.75 against 0.7 gal/hr evaporation. The fan buys the install, not the capacity.
Skip it if a bypass duct fits: the 600 prints 17 gallons per day on the same panel, and the install still needs the saddle valve, drain and duct cut set out below.
Honeywell Home HE280: buy it or skip it?
Buy it if water use matters and a 1-year warranty does not. Honeywell Home’s page prints up to 17 gallons per day, up to 18,000 cubic feet, 24 VAC and pad HC26P1002; the sell sheet claims 30% less water than standard models. The 69-2685ES instructions add a 1/2 in ID drain tube to a floor drain and supply plenum static pressure no greater than 0.4 in. wc.
The flaw is the warranty line: 1 year, against 5 from Aprilaire and GeneralAire. The smaller HE240 prints 12 gallons per day, 13,000 cubic feet and pad HC22P1001 on the same 1 year.
Skip it where the furnace room falls outside 32 to 120 F: those are the ambient limits the instructions print.
Aprilaire 800 steam: buy it or skip it?
Buy it if the home runs on a heat pump or air handler, or if the house is too large or too loose for 17 gallons per day. The 800 manual’s Table 1 prints 11.5 GPD at 120 V and 11.5 A, 16.0 at 120 V and 16 A, 20.5 at 208 V and 11.5 A, 30.0 at 208 V and 16 A, 23.3 at 240 V and 11.5 A and 34.6 at 240 V and 16 A. It ships wired for 240 VAC.
The flaw is the electrical bill of materials. The manual requires a dedicated circuit of at least 20 A for the 11.5 A setting and 25 A for 16 A, field wiring by qualified electrical personnel, supply water at 25 to 120 psi, and hard or softened water: not demineralized, not reverse osmosis. Steam hose costs output too: 34 GPD at 2 ft, 33 at 4 ft and 32 at 6 ft on the 240 V, 16 A setting.
Skip it if you expect to forget it: the Model 80 canister and O-ring are replaced yearly, a licensed contractor replaces the electrode wires every 3 years, and the FAQ puts water use at 1 to 3 gallons per hour.
GeneralAire 1042LH: buy it or skip it?
Buy it, from a dealer, if you want the condition printed next to the number. GeneralAire’s manual rates the 1042LH at 17 gallons per day based on a 120 F plenum temperature, for homes to 3,000 sq ft, on 24 VAC with vapor pad 990-13, a 15 ft drain hose and a 5-year warranty.
The flaw is what that condition excludes: the manual says plenum temperatures must meet or exceed 120 F for the listed capacity, the unit is not recommended for heat pumps, and the plenum must not exceed 200 F. At 20 to 40 psi it points to the larger 990-37-75 orifice.
Measure the house before the humidifier
Do not buy any of these from the square-foot headline. Three facts decide the model: the tightness band that describes the house, whether the furnace delivers the 120 F plenum air GeneralAire names (a heat pump will not), and the circuit available: 24 VAC from the furnace transformer for every evaporative unit, a dedicated 20 or 25 A circuit for the 800.
What does the install actually need?
Every unit here cuts into ductwork and plumbs water, and the makers write the contractor into the warranty.
| Requirement | Aprilaire 500/600/700 | Aprilaire 800 | Honeywell HE280 | GeneralAire 1042LH |
|---|---|---|---|---|
| Water supply | Saddle valve, fully open or closed, never throttled | 25 to 120 psi; no RO or demineralized water | Up to 120 psi | 20 to 40 psi may need orifice 990-37-75 |
| Drain | Required; minerals flushed to drain | 7/8 in ID tubing; condensate pump Part 4856 without a floor drain | 1/2 in ID tube to floor drain | 15 ft hose to floor drain, laundry sink or condensate drain |
| Power | 24 VAC transformer | 120, 208 or 240 VAC on a 20 or 25 A dedicated circuit; qualified electrical personnel | 24 VAC, 0.5 A | 24 VAC |
| Mounting | Supply or return plenum, bypass duct for 500 and 600 | Steam hose to the duct; output falls with hose length | At least 3 in above the furnace body; static pressure at most 0.4 in. wc | Plenum between 120 and 200 F |
| Warranty condition | Void without a qualified heating and air conditioning contractor | Field wiring by qualified electrical personnel | Not stated on the pages read | Void without a qualified contractor |
Aprilaire’s manual also says the saddle valve is designed to be fully open or fully closed and must not be used to regulate flow.
Who should skip a whole-house humidifier?
Renters. Every install here cuts a duct and taps a water line, and two makers void the warranty without a contractor.
Heat-pump-only homes, for the evaporative units. GeneralAire says not recommended; Aprilaire requires hot supply water and prints no plenum minimum. The 800 steam unit is the exception, at the cost of a dedicated circuit.
Loose or older homes sizing from the big number. On the 800 table a loose house gets 2,500 sq ft from the wiring that gives a tight one 6,000.
A single dry bedroom. The bedroom humidifier review needs no duct cut.
What goes wrong?
The panel is not changed. Aprilaire, Honeywell and GeneralAire all print at least yearly, Honeywell more often in hard water. Part numbers by model are on the humidifier filter by model page; the white dust guide covers hard water.
The humidistat is set once. Aprilaire’s automatic control moves the setpoint 1% RH for every 2 F change outdoors; a manual control, such as the linked 600M, has to be moved by hand as the weather turns. The indoor humidity by outdoor temperature calculator gives the target.
The steam unit is wired small. At 120 V and 11.5 A the 800 prints 11.5 GPD, a third of its 34.6 maximum.
Frequently asked questions
What is the difference between a bypass, a fan-powered and a steam humidifier?
A bypass humidifier uses the furnace blower to push supply air through a wet water panel by way of a duct back to the return. A fan-powered unit, such as the Aprilaire 700, has its own fan and needs no bypass duct. A steam unit, such as the Aprilaire 800, boils water with electrodes on a 120 or 240 V circuit and works without a warm plenum.
How many gallons per day does a whole-house humidifier need?
The makers size by home and tightness, not by a shared test. Aprilaire's shop pages print 12 GPD for the 500 up to 3,600 sq ft tight, 17 GPD for the 600 up to 5,000 sq ft and 18 GPD for the 700 up to 5,300 sq ft, while Aprilaire's FAQ gives 1,500 and 3,000 sq ft for the same units. Treat the shop figure as a ceiling.
Can a whole-house humidifier be installed on a heat pump?
Not every model. GeneralAire's 1042LH manual says the unit is not recommended for heat pumps and that its 17 GPD needs 120 F plenum air. Aprilaire's owner's manual for the 500 to 700 requires hot supply water, 140 F maximum, for heat pump and air handler applications. Aprilaire's 800 shop page says the steam unit works with or without forced air heat.
How often does the water panel need replacing?
Aprilaire's owner's manual says the Water Panel is changed at least annually, Stock No. 10 for the Model 500 and Stock No. 35 for the 600 and 700, and its FAQ puts those panels at once per heating season. Honeywell's instructions say to replace the HC26P pad annually, more often in hard water. GeneralAire says at least yearly for pad 990-13; the 800 replaces its Model 80 canister yearly.
Does a whole-house humidifier need a drain?
Every unit on this page does. Aprilaire's manual says the 500, 600 and 700 flush minerals to a drain, and the FAQ puts their water use at 1 to 2 gallons per hour, 1 to 3 for the 800. Honeywell's HE280 instructions call for a 1/2 in ID drain tube to a floor drain; the 800 manual specifies 7/8 in ID tubing and a condensate pump without one.
Fact sheet and how to cite this page
- Answer
- For a tightly built home on a gas furnace the pick is the Aprilaire 600: its shop page prints 17 gallons per day, up to 5,000 sq ft, a Model 35 Water Panel changed yearly and a 5-year warranty; Aprilaire’s FAQ rates it for 3,000 sq ft. On a heat pump, the Aprilaire 800 makes its own steam: 11.5 to 34.6 GPD by voltage.
- Comparison basis
- Manufacturer shop pages, owner’s and installation manuals and FAQs for the Aprilaire 500, 600, 700 and 800, Honeywell Home HE240, HE280 and HE300 and GeneralAire 1042LH, compared on type, printed gallons per day and the conditions behind them, home size and tightness band, water use and drain, voltage and circuit, water panel part and interval, and warranty years.
- Assumptions
- Gallons-per-day figures are the maker’s maximum under the maker’s own conditions; only GeneralAire prints a plenum temperature (120 F) and only Aprilaire’s 800 manual prints the voltage and hose-length conditions
- Home-size figures assume 8 ft ceilings and the tightness band the maker names; the same maker prints different figures on different pages, so the page reports both
- A gas or oil furnace supplies the warm plenum air an evaporative unit needs; GeneralAire says its unit is not recommended for heat pumps and Aprilaire requires hot supply water for heat pump and air handler installs
- Method
- OwnerSpec compared manufacturer-published specifications read on 2026-10-02 and confirmed each linked listing in stock the same day; it did not install, run or measure any humidifier, prints no health outcome, and reports only the figures the cited document states. The GeneralAire 1042LH is compared but not linked because its listings were not plainly in stock.
- Primary source
- Aprilaire, Model 600 humidifier product page (manufacturer or vendor document)
- Facts verified
- Last updated
- Cite as
- OwnerSpec, "Best whole-house humidifier: the gallons per day, home size, water panel, power and warranty each maker prints, and why the same unit is rated 5,300 sq ft on one Aprilaire page and 3,000 on another", https://ownerspec.com/air/reviews/best-whole-house-humidifier/, facts verified 2 October 2026.
Every figure above also appears, with its source, in the article. All sources ยท How OwnerSpec verifies numbers
