Pipe Insulation Size by Pipe Diameter: Why 1/2 Inch Copper Needs a 5/8 Inch Sleeve, and the Match Table for Copper, PEX and Iron Pipe
Foam sleeves fit the pipe's outside diameter. Copper Tube Handbook: 1/2 in copper is 0.625 in OD, 3/4 in is 0.875 in; PEX matches; 1/2 in iron pipe is 0.840 in.
- Verified
- Updated
- 7 min read
- 12 sources
Shop links on this page are affiliate links: a purchase may earn us a commission at no extra cost to you. Disclosure
OwnerSpec compares published manufacturer specifications, certification listings and sourced technical documents. Unless a page explicitly states otherwise, OwnerSpec has not laboratory-tested or used the products it compares. Editorial policy
Short answer
Tubular pipe insulation is sized by the pipe’s outside diameter, and for copper and PEX that is always larger than the number stamped on the pipe. The Copper Development Association’s Copper Tube Handbook lists 1/2 inch Type K, L and M copper at 0.625 inch outside diameter, 3/4 inch at 0.875 inch and 1 inch at 1.125 inch, and states that the actual outside diameter is always 1/8 inch larger than the standard size. The Plastics Pipe Institute’s PEX table gives the same 0.625 and 0.875 inch figures, because PEX is made to copper tube size. Steel and iron pipe runs the other way: 1/2 inch pipe is 0.840 inch across and 3/4 inch is 1.050 inch, so Frost King’s foam for 3/4 inch copper is the same sleeve it sells for 1/2 inch iron pipe. Measure the pipe, then buy the sleeve whose inside diameter matches, in a 3/8, 5/8 or 1 inch wall.
The picks
Short runs and fittings on 3/4 inch nominal copper or PEX
Duck Brand Foam Pipe Covers, 0.75 in x 1 ft, 6 sticks
Listed as 0.75 inch foam pipe covers in six 1-foot sticks; the same pick as the frozen pipes guide, so the two pages agree
A long unbroken run on a pipe that measures about 3/4 inch across
Tsurpcao Foam Tube, 3/4 in ID x 1-31/64 in OD, 6 ft
The listing states its own inside and outside diameter, 3/4 inch ID by 1-31/64 inch OD, which puts its wall near 3/8 inch
A pipe that measures a true 1 inch across; check with a caliper first
Tsurpcao Foam Tube, 1 in ID x 1-23/32 in OD, 6 ft
Listing states 1 inch ID by 1-23/32 inch OD in a 6 foot length
Tube that really measures 1/2 inch across: 3/8 inch nominal copper, not 1/2 inch nominal
CARGEN 1/2 in ID Foam Pipe Insulation, for 1/2 in OD tube
Listing states a 1/2 inch inside diameter and that it fits 1/2 inch OD copper and PEX; 1/2 inch nominal copper is 0.625 inch OD and will not close in it

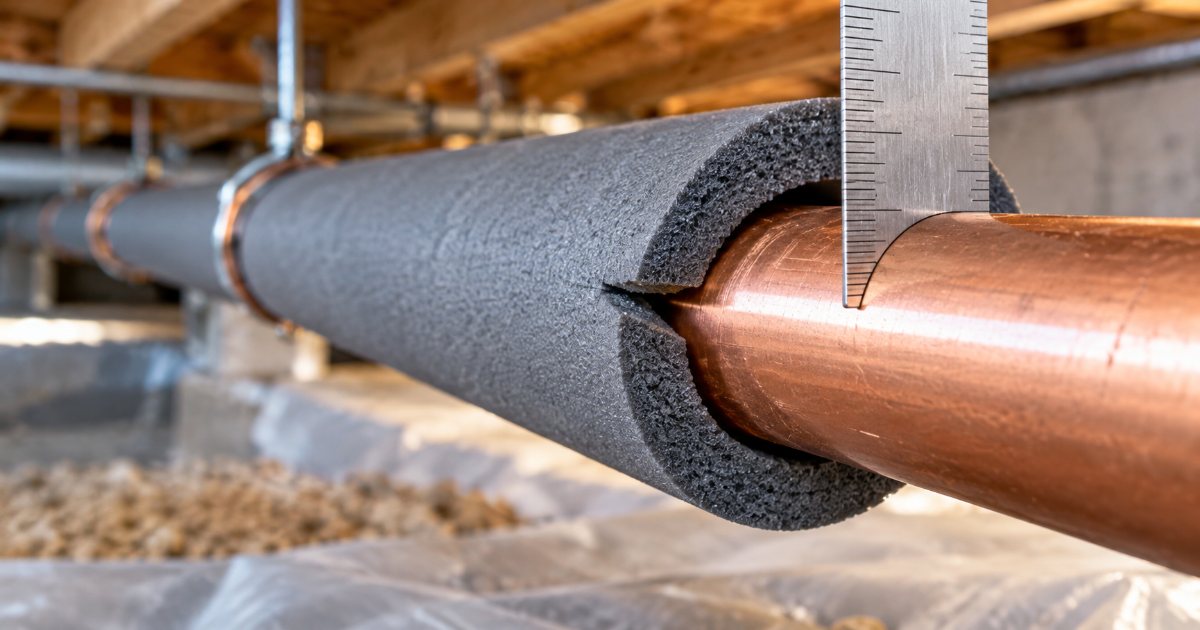

Do not buy insulation by the number on your pipe: a 1/2 inch copper pipe is 5/8 inch across, and a sleeve with a true 1/2 inch bore will not close around it.
Which sleeve fits which pipe?
Outside diameter is the width across the outside of the pipe, and it is the only dimension a slit sleeve cares about. The table pairs each common house pipe with its published OD and the sleeve Frost King sells for it.
| Pipe | Nominal size | Outside diameter | Sleeve inside diameter | Frost King foam (3/8 in wall) | Frost King rubber (1/2 in wall) |
|---|---|---|---|---|---|
| Copper, Type K, L or M | 1/2 in | 0.625 in (5/8 in) | 5/8 in | P10X, “for 1/2 in copper or 1/4 in iron pipes” | R10XB/6, “for 5/8 in copper pipes” |
| Copper, Type K, L or M | 3/4 in | 0.875 in (7/8 in) | 7/8 in | P11X, “for 3/4 in copper or 1/2 in iron pipes” | R11XB/6, “for 7/8 in copper pipes” |
| Copper, Type K, L or M | 1 in | 1.125 in (1-1/8 in) | 1-1/8 in | P12X, “for 1 in copper or 3/4 in iron pipes” | R12XB/6, “for 1-1/8 in copper pipes” |
| PEX | 1/2 in | 0.625 in | 5/8 in | P10X | R10XB/6 |
| PEX | 3/4 in | 0.875 in | 7/8 in | P11X | R11XB/6 |
| PEX | 1 in | 1.125 in | 1-1/8 in | P12X | R12XB/6 |
| Steel or iron pipe (NPS) | 1/2 in | 0.840 in | about 7/8 in | P11X | Not named on the page |
| Steel or iron pipe (NPS) | 3/4 in | 1.050 in | about 1-1/8 in | P12X | Not named on the page |
| Steel or iron pipe (NPS) | 1 in | 1.315 in | about 1-3/8 in | P13X, “for 1-1/4 in copper or 1 in iron pipes” | Not named on the page |
Copper figures are the Copper Tube Handbook’s Tables 14.2a to 14.2c, which list the same outside diameter for Types K, L and M at every size; only the wall thickness changes. PEX figures are the Plastics Pipe Institute’s dimensions table, which states that North American PEX is produced in nominal tube sizes with outside diameters matching copper tubing of the same nominal diameter.
Steel pipe figures come from an engineering reference summarising ASME B36.10/19. The standard itself was not readable this session, so take 0.840 and 1.050 inch as second-hand figures until you have measured the pipe.
Frost King’s rubber page also lists sleeves by bore, for example RS511XB/6 at 3/4 inch ID by 1/2 inch wall. A 3/4 inch ID sleeve fits a pipe that measures 3/4 inch, which is 5/8 inch nominal copper, not 3/4 inch nominal.
What does the label size mean?
It depends on the maker, and that is the whole problem. Frost King labels foam by the pipe it fits and rubber by inside diameter. Retail listings do either, and some do both at once: the CARGEN 1/2 inch ID sleeve is sold as fitting 1/2 inch OD copper and PEX, which is 3/8 inch nominal tube, not the 1/2 inch pipe most readers own.
The reliable listings print both numbers. The Tsurpcao 3/4 inch tube states 3/4 inch ID by 1-31/64 inch OD, and its 1 inch sibling states 1 inch ID by 1-23/32 inch OD. Subtract and halve, and each has a wall close to 3/8 inch.
If a listing gives one number and no wording, measure the pipe with a caliper or wrap a strip of paper around it and divide the length by 3.14. Buy the inside diameter that matches or sits 1/16 inch over, never under.
How thick a wall should you buy?
| Wall | Frost King product family | Where it is sold |
|---|---|---|
| 3/8 in polyethylene foam | P10X to P13X, 3 ft; P09XB6 to P13XB/6, 6 ft | Home centre |
| 1/2 in polyethylene foam, brown | S10XB/6 to S12XB/6, SP510XB6 to SP514XB6 | Home centre |
| 5/8 in polyethylene foam | P10 to P13, 3 ft; P10B/6 to P12B/6, 6 ft | Home centre |
| 1 in polyethylene foam | P110XB/6 to P112XB/6, 6 ft | Home centre |
| 1/2 in and 3/4 in rubber | R and RS series, 6 ft | Home centre |
| 1/2 in fiberglass, self-sealing jacket | F10XAD to F18XAD, 1/2 in to 4 in pipe, 3 ft | Home centre |
The Freezing and Bursting Pipes fact sheet puts the home-centre range at 1/8 to 5/8 inch of insulation, says specialty dealers carry sleeves up to 2 inches, and recommends 2 inch fiberglass sleeves for exterior pipe. None of the Frost King pages opened this session prints an R-value, so the wall thickness is the only published figure to compare.
Thicker foam does not stop a freeze on its own. The fact sheet describes insulation as slowing heat transfer, and Utah State University Extension is blunter: insulation will not protect pipes from prolonged freezing temperatures unless there is some source of heat or periodic water flow. The frozen pipes guide covers what that flow and heat look like in practice.
Measure before you order
Foam is cheap and the wrong bore is worthless, so measure the pipe first. For a 3/4 inch copper or PEX run, the Duck Brand 0.75 inch covers are the short-stick pack the frozen pipes guide already uses; the six 1-foot sticks suit a run broken by fittings, and a 6 foot tube suits a straight crawlspace run. If the run has frozen before, size a cable first with the heat cable calculator and put the sleeve over the cable, because the sleeve alone slows the freeze and does not stop it.
Frequently asked questions
What size pipe insulation fits 1/2 inch copper pipe?
A sleeve with a 5/8 inch inside diameter. The Copper Tube Handbook lists 1/2 inch Type K, L and M copper at 0.625 inch outside diameter, and Frost King's rubber sleeve for that pipe is marked R10XB/6, 1/2 inch wall for 5/8 inch copper pipes. Its foam version is simply labelled for 1/2 inch copper or 1/4 inch iron pipe.
Is PEX the same outside diameter as copper?
Yes for the nominal sizes sold for house plumbing. The Plastics Pipe Institute states that North American PEX is produced in nominal tube sizes with outside diameters matching copper tubing of the same nominal diameter, and its table lists 1/2 inch PEX at 0.625 inch OD and 3/4 inch at 0.875 inch. Use the copper row of the match table.
Why does my 1/2 inch foam insulation not close around my 1/2 inch pipe?
Because the sleeve was sized by inside diameter and the pipe by nominal size. A 1/2 inch nominal copper pipe is 0.625 inch across, per the Copper Tube Handbook, so a sleeve with a true 1/2 inch bore is 1/8 inch too small. The CARGEN listing that says 1/2 inch ID for 1/2 inch OD tube is meant for 3/8 inch nominal copper.
How thick should pipe insulation be?
The Freezing and Bursting Pipes fact sheet says home centres carry sleeves giving 1/8 to 5/8 inch of insulation, specialty dealers carry up to 2 inches, and it recommends 2 inch fiberglass sleeves for exterior pipe. Frost King's foam comes in 3/8, 5/8 and 1 inch walls. No page opened this session printed an R-value for any of them.
Will insulation stop my pipes freezing?
Not on its own in a long freeze. Utah State University Extension states that insulation will not protect pipes from prolonged freezing temperatures unless there is some source of heat or periodic water flow, and the fact sheet describes insulation as slowing heat transfer. On a run that has frozen before, size a heat cable and put the sleeve over it.
Fact sheet and how to cite this page
- Answer
- Tubular pipe insulation is matched to the pipe’s outside diameter, not the size stamped on it. The Copper Tube Handbook lists 1/2 inch Type K, L and M copper at 0.625 inch OD, 3/4 inch at 0.875 inch and 1 inch at 1.125 inch, and PEX is made to the same sizes. Iron pipe runs larger: 1/2 inch is 0.840 inch OD and 3/4 inch is 1.050 inch, so it takes the next sleeve up.
- Applies to
- Pipe: copper Type K, L or M, 1/2 to 1 inch
- Pipe: PEX, 1/2 to 1 inch
- Pipe: steel or iron pipe (NPS), 1/2 to 1 inch
- Compatibility basis
- Copper Development Association, Copper Tube Handbook A4015-26/24, Tables 14.2a to 14.2c (copper OD); Plastics Pipe Institute PEX dimensions table (PEX OD); Engineering ToolBox summary of ASME B36.10/19 (steel pipe OD); Frost King product pages for foam, rubber and fiberglass tubular insulation (which sleeve names which pipe)
- Assumptions
- Frost King’s foam sleeves are labelled by the pipe they fit, not by inside diameter, so the table uses the maker’s own wording and does not invent an inside diameter for them.
- Armacell, Everbilt, Tundra and Duck Brand size charts could not be opened this session, so no row is attributed to them. The steel pipe OD comes from a compiled engineering reference that cites ASME B36.10/19, not from the standard itself.
- No page opened this session printed an R-value for tubular pipe insulation, so the table gives wall thickness only.
- Method
- Outside diameters copied from the Copper Tube Handbook PDF and the PPI PEX dimensions table. Sleeve sizes copied from Frost King’s product listings. Freeze behaviour from the Freezing and Bursting Pipes fact sheet and Utah State University Extension. OwnerSpec measured no pipe and installed no insulation.
- Primary source
- Copper Development Association, Copper Tube Handbook, CDA Publication A4015-26/24, Tables 14.2a to 14.2c (PDF) (manufacturer or vendor document)
- Facts verified
- Last updated
- Cite as
- OwnerSpec, "Pipe Insulation Size by Pipe Diameter: Why 1/2 Inch Copper Needs a 5/8 Inch Sleeve, and the Match Table for Copper, PEX and Iron Pipe", https://ownerspec.com/plumbing/parts/pipe-insulation-size-by-pipe-diameter/, facts verified 27 September 2026.
Every figure above also appears, with its source, in the article. All sources ยท How OwnerSpec verifies numbers
Sources
- Copper Development Association, Copper Tube Handbook, CDA Publication A4015-26/24, Tables 14.2a to 14.2c, Dimensions and Physical Characteristics of Copper Tube, Types K, L and M (PDF) (manufacturer or vendor document)
- Plastics Pipe Institute, Cross-linked Polyethylene (PEX) pipe, nominal tube sizes and dimensions table (manufacturer or vendor document)
- Engineering ToolBox, Steel Pipes Dimensions, ASME/ANSI B36.10/19 (compiled reference; the ASME standard itself was not readable this session) (manufacturer or vendor document)
- Frost King, Pre-Slit Tubular Polyethylene Foam Pipe Insulation, product sizes P10X to P13X, P10 to P13, P110XB/6 to P112XB/6 (manufacturer or vendor document)
- Frost King, Rubber Tubular Pipe Insulation, product sizes R10XB/6 to R12XB/6 and RS series (manufacturer or vendor document)
- Frost King, Pre-Slit Tubular Fiberglass Pipe Cover with Self-Sealing Jackets, F10XAD to F18XAD (manufacturer or vendor document)
- Freezing and Bursting Pipes: How pipes freeze and burst, and what to do to prevent damage (fact sheet, PDF) (manufacturer or vendor document)
- Utah State University Extension, Advice to Prevent Frozen Pipes (university or extension service)
- Amazon listing, Duck Brand Foam Pipe Covers, 0.75 in x 1 ft, 6 sticks (title and stock checked 27 September 2026) (retailer listing or retailer-hosted document)
- Amazon listing, Tsurpcao Pipe Insulation Foam Tube 3/4 inch, 3/4 in ID x 1-31/64 in OD, 6 ft (title and stock checked 27 September 2026) (retailer listing or retailer-hosted document)
- Amazon listing, Tsurpcao Pipe Insulation Foam Tube 1 inch, 1 in ID x 1-23/32 in OD, 6 ft (title and stock checked 27 September 2026) (retailer listing or retailer-hosted document)
- Amazon listing, CARGEN 1/2 in ID Foam Pipe Insulation, fits 1/2 in OD copper and PEX (title and stock checked 27 September 2026) (retailer listing or retailer-hosted document)
